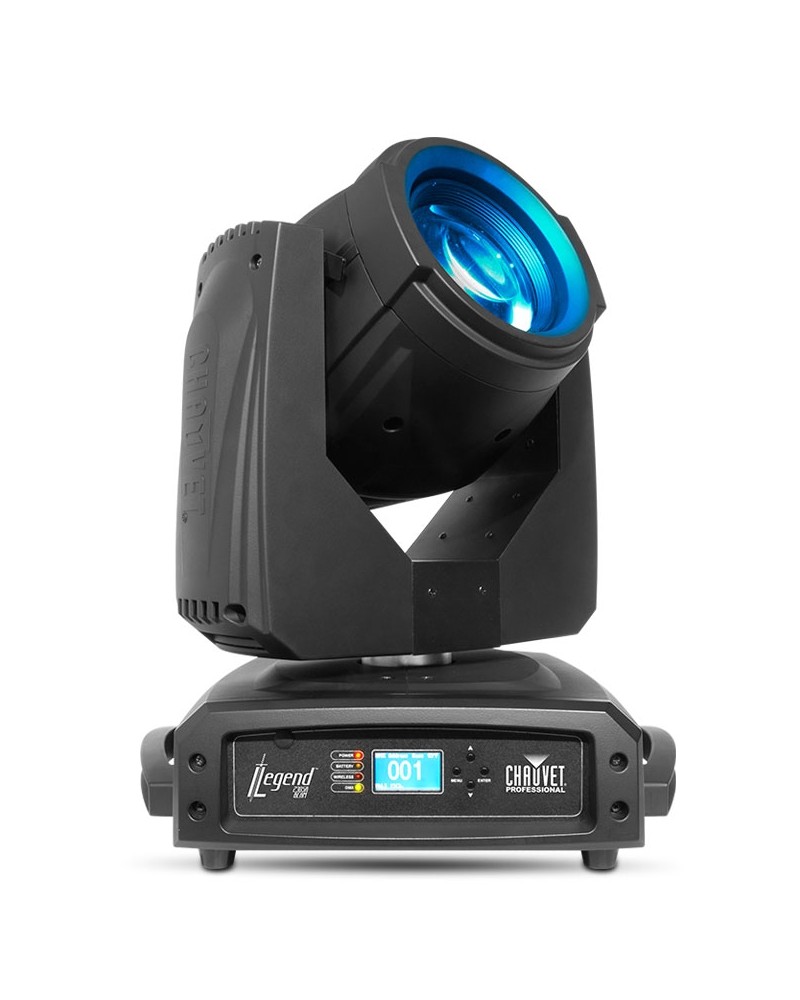

Legend 230SR Beam is a compact beam fixture featuring the new Osram Sirius lamp source. This 230 Watt lamp produces an intense 96,000 lux at 15 m thanks to precision glass optics and a tiny 2.25° beam angle. This fast, agile fixture also features a zooming 8-facet prism and 17 gobos (plus open) for beam shaping effects, along with automated focus. A 14-slot (plus open) color wheel is capable of delivering seamless split colors and a frost filter to widen and soften the beam.
Legend 230SR Beam is a compact beam fixture featuring the new Osram Sirius lamp source. This 230 Watt lamp produces an intense 96,000 lux at 15 m thanks to precision glass optics and a tiny 2.25° beam angle. This fast, agile fixture also features a zooming 8-facet prism and 17 gobos (plus open) for beam shaping effects, along with automated focus. A 14-slot (plus open) color wheel is capable of delivering seamless split colors and a frost filter to widen and soften the beam.
Features:
• Compact moving yoke beam fixture with a zoomable prism and motorized focus
• Uses Osram Sirius 230W Lamp source with a rated 3000 hour lamp life
• Precision designed optics for hard edged beam effects
• Extremely quiet for operation in any situation
• Fast and precise pan and tilt movement
• Color wheel: 14 colors + White - CTO - Split/linear colors - Rainbow color spin at
variable speed
• Gobo wheel: 17 gobos + Open - Gobo wheel spin at variable speed
• Variable frost
• 8 facet rotating prism with zoom for stunning effects
• Lightweight and easy to hang
• DMX channels: 15 or 18
• Pan: 540 degrees
• Tilt: 270 degrees
• Reset over DMX
• Electronic power supply
• Mechanical Dimmer
• 3-pin and 5-pin DMX input and output connectors
Specifications:
• DMX connectors: 3-pin & 5-pin
• Pan & tilt: 540° / 270°
• Light source: Osram Sirius 230W Lamp (3000 hour lamp life)
• Beam angle: 2.25°
• Lux: 96,000 @ 15m
• Input voltage: auto-ranging 100-240 VAC 50/60 Hz
• Power and current: 415 W, 3.43 A @ 120 V 60 Hz (operating)
• Power and current: 401 W, 2.02 A @ 208 V 60 Hz (operating)
• Power and current: 385 W, 1.75 A @ 230 V 50 Hz (operating)
• Dimensions: 13.52 x 16.34 x 19.59in (343.4 x 415 x 497.5mm)
• Weight: 41.3 lbs (18.73 kg)
• Hard Wired Power Cable
• Control Connection: 3-pin & 5-pin DMX
• Approvals: CE
• Environment: IP20, dry location
