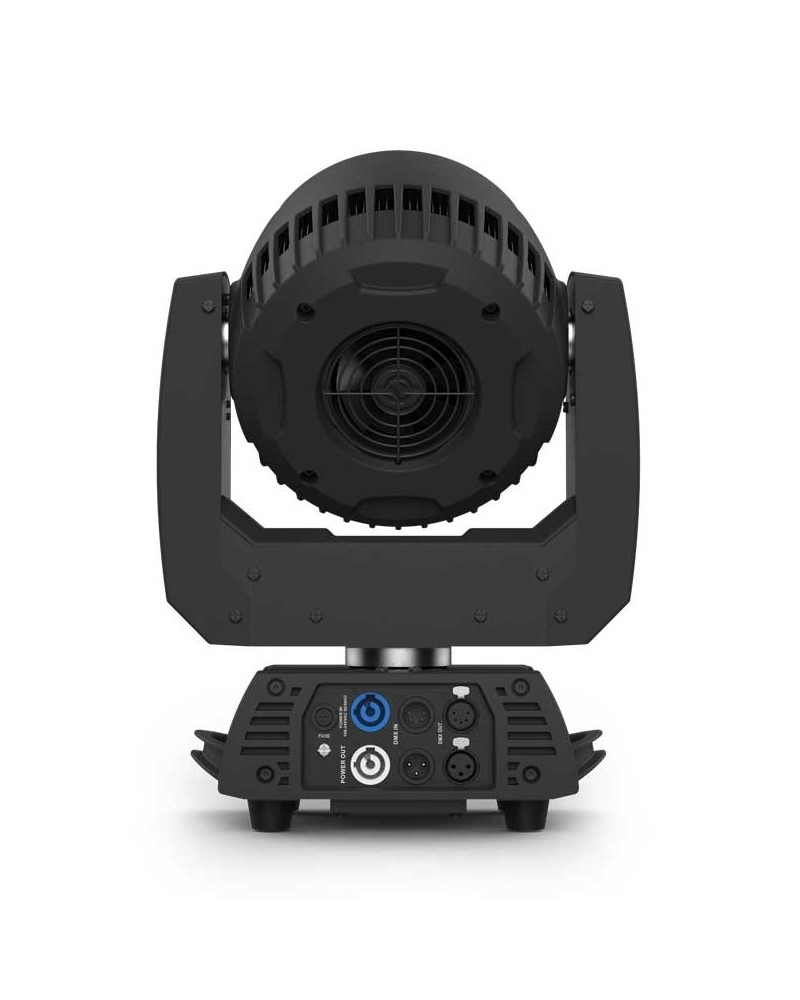

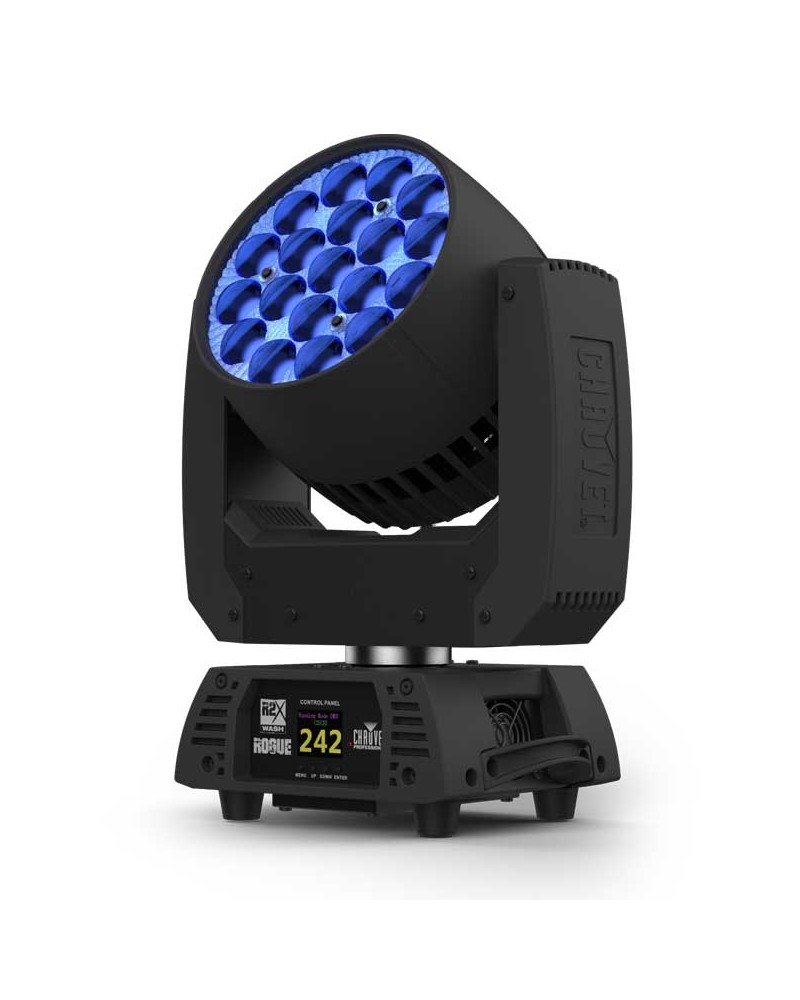

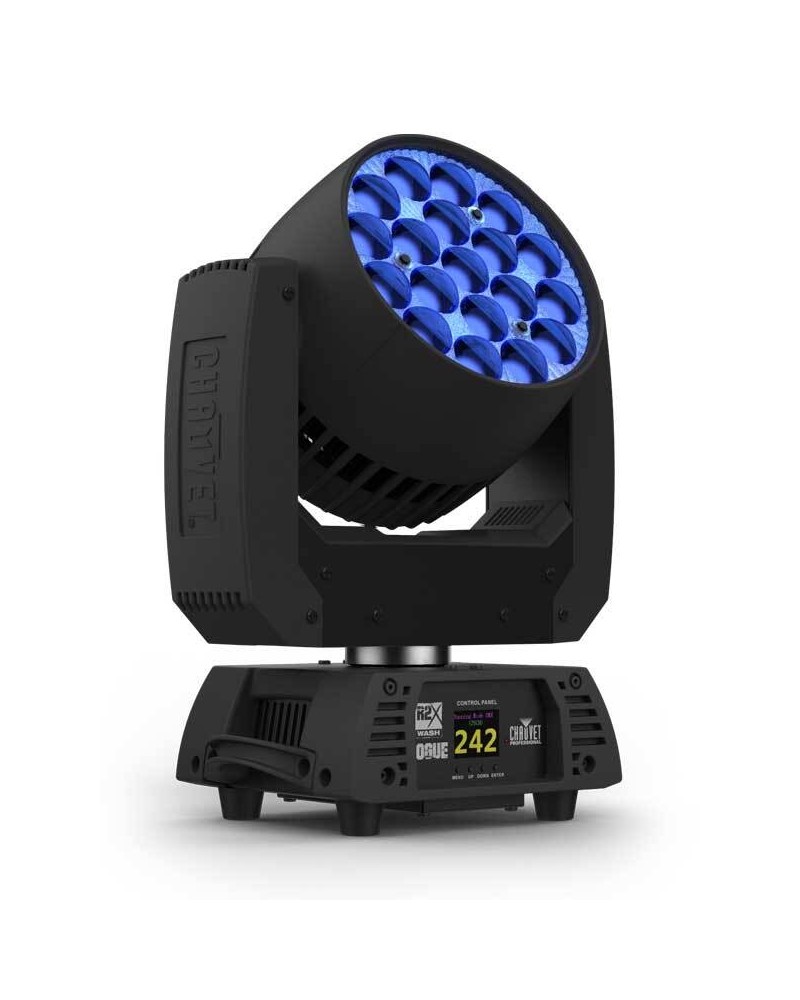

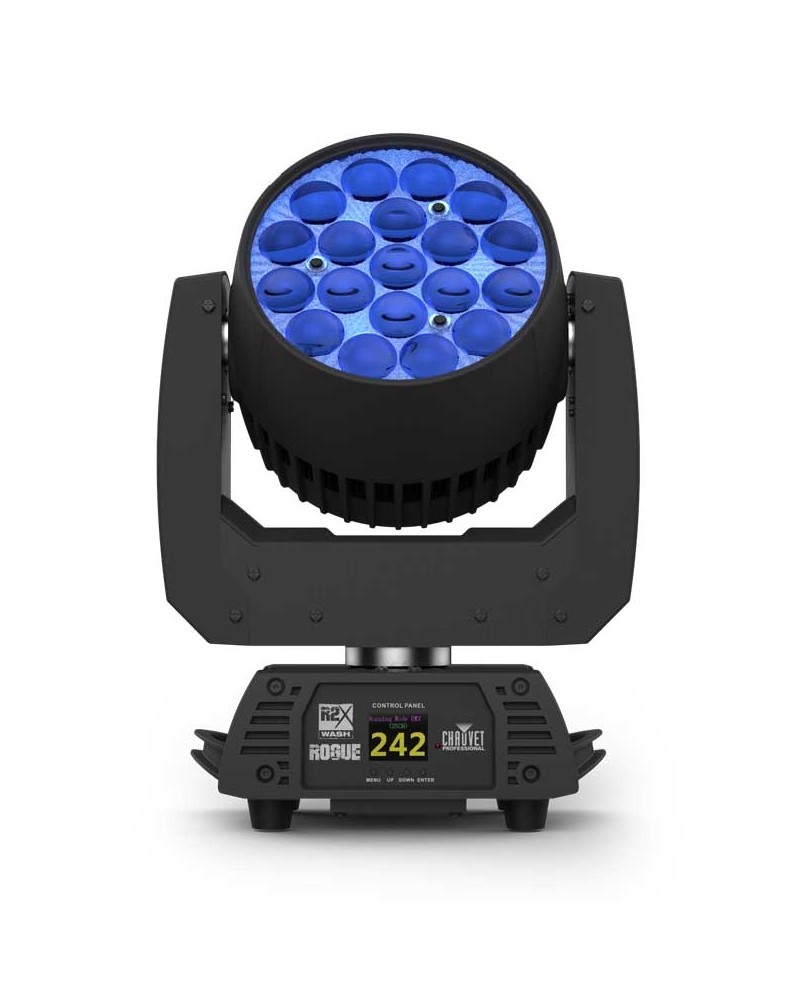

Chauvet Rouge R2X Led Wash

Chauvet Rouge R2X Led Wash

Chauvet
|

Rogue R2X Wash is a valuable addition to rental and production inventories. Durable and dependable, this moving wash workhorse produces a bright, powerful light and offers five zones of LED control to pixel map its 19 (25 W) RGBW quad-LEDs. A standout zoom range of 7.3° to 64.3° gives it the spread to cover even the largest areas. Smooth color mixing, simple and complex DMX channel profiles and powerCON in and out are just some of the other features that make this fixture a standout performer in any setting

£42.00
VAT included
Quantity
Add to Wishlist
Add to Compare

588
Lighting Moving Heads and Beams

OPTICAL

  • Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Beam Angle: 7.3° to 35.2°
  • Field Angle: 11.2° to 51.2°
  • Cutoff Angle: 17.6° to 64.3°
  • Zoom Range: 7.3° to 64.3°
  • Lumens – Source: 10,300
  • Lumens – Output: 6,418
  • Illuminance (11.2°): 8,149 lux @ 5 m
  • Illuminance (51.2°): 726 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz


DYNAMIC EFFECTS

  • Pan and Tilt: 540°/230°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No


CONSTRUCTION / PHYSICAL

  • Dimensions: 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)
  • Weight: 22.8 lb (10.3 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer


CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)


CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 15, 17, 22, 33, 54, or 56
  • Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)


ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
  • Power and Current: 342 W, 2.85 A @ 120 V, 60 Hz
  • Power and Current: 338 W, 1.631 A @ 208 V, 60 Hz
  • Power and Current: 344 W, 1.488 A @ 230 V, 50 Hz
