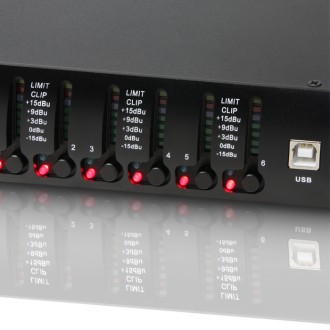

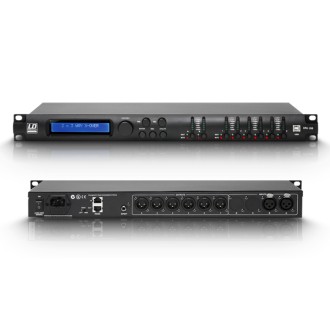

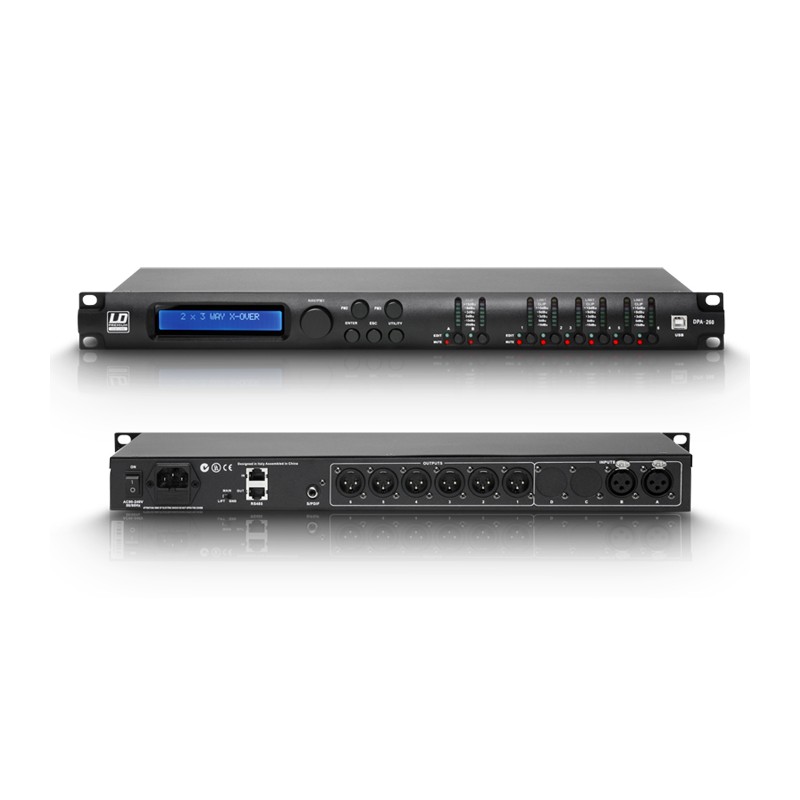

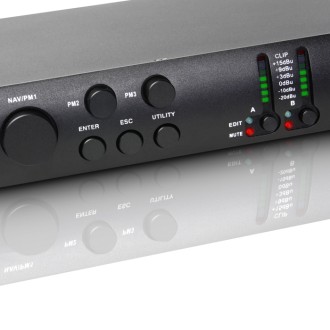

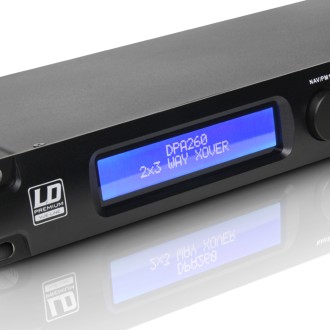

The LD DPA-260 is a 6-channel 19” speaker processor for our VA-4, VA-8 and UNO arrays.
Type: DSP Controller for Line Array VA-4, VA-8 and UNO
Model Name: DPA-260
Description: 6-Channel 19" speaker processor, 32bit DSP, 24bit AD/DA (48 kHz) converter
Inputs: 2 Channels Analog/Digital, L + R, Noise Gate, the inputs and outputs are freely assignable, that means you can assign any input to any output and vice versa
Input EQ: 5 Band PEQ, Low Shelf and High Shelf Types available
Crossover Range: 20 Hz - 20 kHz
Outputs: 6 Channels, High/Low Pass Filter, Filtertype and dB available, 7 Band PEQ, Low Shelf and High Shelf Types available, Limiter with Threshold, Attack and Release Parameters
Delay: Time or Meter available, Max. Delay up to 848 ms
Phase Invert Function: USB Port, Full programmable Software included with 24 Memory Capacity for Presets
Display: 2 × 16 character LCD with backlight
Switch mode power supply: 90 V - 250 V
Dimensions: 19" / 1U
Width: 482 mm
Height: 44,5 mm
Depth: 270 mm
