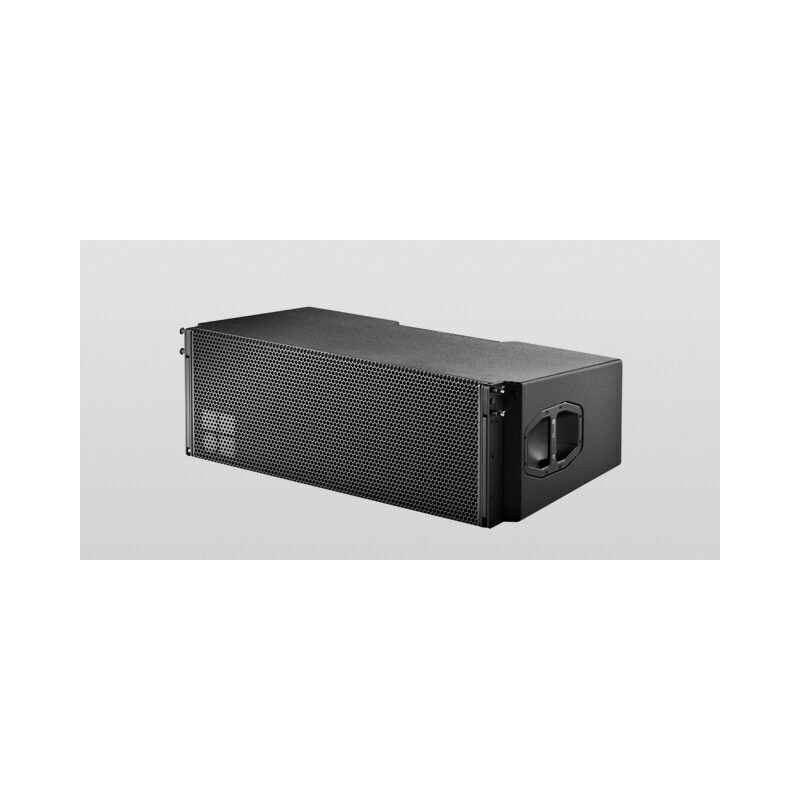

d&b audiotechnik J12 Loudspeaker

d&b audiotechnik J12 Loudspeaker

|

The J12 is a 3-way design housing 2 x 12" LF drivers, one hornloaded 10" MF driver and two 1.4" exit HF compression drivers with 3" voicecoils mounted to a dedicated waveshaping device. The mechanical and acoustical design enables flown vertical columns of up to 24 loudspeakers to be suspended using vertical splay angles between them of 0° to 7° with a 1° resolution. The cylindrical wave segments produced couple coherently in the vertical plane. Due to the dipolar arrangement of the neodymium LF drivers the exceptional 120° horizontal constant directivity dispersion control is nominally maintained down to 250 Hz. The J12 is acoustically and mechanically compatible to the J8 loudspeaker. It can be used in columns of purely J12 loudspeakers or combined with J8s and / or with J-SUBs. The

£120.00
VAT included
Quantity
Add to Wishlist
Add to Compare

750
New Items

The J12 is a 3-way design housing 2 x 12" LF drivers, one hornloaded 10" MF driver and two 1.4" exit HF compression drivers with 3" voicecoils mounted to a dedicated waveshaping device. The mechanical and acoustical design enables flown vertical columns of up to 24 loudspeakers to be suspended using vertical splay angles between them of 0° to 7° with a 1° resolution. The cylindrical wave segments produced couple coherently in the vertical plane. Due to the dipolar arrangement of the neodymium LF drivers the exceptional 120° horizontal constant directivity dispersion control is nominally maintained down to 250 Hz. The J12 is acoustically and mechanically compatible to the J8 loudspeaker. It can be used in columns of purely J12 loudspeakers or combined with J8s and / or with J-SUBs. The J12 cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill, the side and rear panels incorporate four handles, and two NLT4F/M or NL8 connectors wired in parallel are also mounted at the rear.

750
4 Items

No customer reviews for the moment.
